Home > Our Products > Centrifugal Switch
Centrifugal Switch

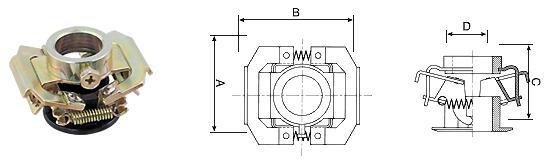

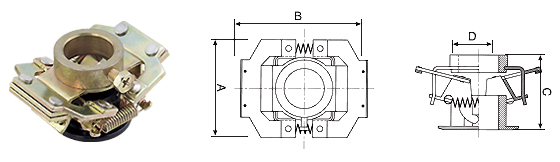

Centrifuge
Model Size Number of Poles Frequency
A B C D
TA-1425A 54.5 43.5 34 14 2P 50HZ, 60HZ
TA-1625A 54.5 43.5 34 16 2P 50HZ, 60HZ
TA-1925A 54.5 43.5 34 19 2P 50HZ, 60HZ

Model Size Number of Poles Frequency
A B C D
TA-1445A 54.5 43.5 34 14 4P 50HZ, 60HZ
TA-1645A 54.5 43.5 34 16 4P 50HZ, 60HZ
TA-1945A 54.5 43.5 34 19 4P 50HZ, 60HZ

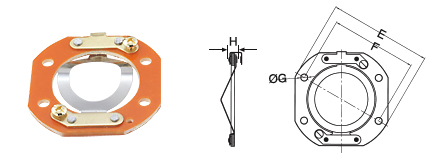

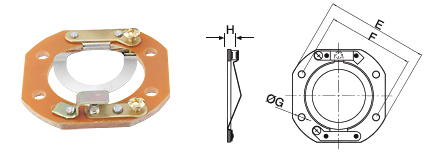

Switch

Model Size Contact Horsepower Number of Poles Frequency
E F G H
TA-255B 70 55 5.5 13.5 5 silver 1/2 HP below 2P 50HZ, 60HZ
TA-265B 70 55 5.5 13.5 6 silver 1 HP below 2P 50HZ, 60HZ
TA-275B 70 55 5.5 13.5 7 silver 2 HP below 2P 50HZ, 60HZ
TA-285B 70 55 5.5 13.5 8 silver 3 HP below 2P 50HZ, 60HZ
TA-295B 70 55 5.5 13.5 All silver 5 HP below 2P 50HZ, 60HZ
TA-205B 70 55 5.5 13.5 Special silver 3 HP below 2P 50HZ, 60HZ
TA-455B 70 55 5.5 13.5 5 silver 1/2 HP below 4P 50HZ, 60HZ
TA-465B 70 55 5.5 13.5 6 silver 1 HP below 4P 50HZ, 60HZ
TA-475B 70 55 5.5 13.5 7 silver 2 HP below 4P 50HZ, 60HZ
TA-485B 70 55 5.5 13.5 8 silver 3 HP below 4P 50HZ, 60HZ
TA-495B 70 55 5.5 13.5 All silver 5 HP below 4P 50HZ, 60HZ
TA-405B 70 55 5.5 13.5 Special silver 3 HP below 4P 50HZ, 60HZ


Model Size Contact Horsepower Number of Poles Frequency
E F G H
TB-255B 70 55 5.5 13.5 5 silver 1/2 HP below 2P 50HZ, 60HZ
TB-265B 70 55 5.5 13.5 6 silver 1 HP below 2P 50HZ, 60HZ
TB-275B 70 55 5.5 13.5 7 silver 2 HP below 2P 50HZ, 60HZ
TB-285B 70 55 5.5 13.5 8 silver 3 HP below 2P 50HZ, 60HZ
TB-295B 70 55 5.5 13.5 All silver 5 HP below 2P 50HZ, 60HZ
TB-205B 70 55 5.5 13.5 Special silver 3 HP below 2P 50HZ, 60HZ
TB-455B 70 55 5.5 13.5 5 silver 1/2 HP below 4P 50HZ, 60HZ
TB-465B 70 55 5.5 13.5 6 silver 1 HP below 4P 50HZ, 60HZ
TB-475B 70 55 5.5 13.5 7 silver 2 HP below 4P 50HZ, 60HZ
TB-485B 70 55 5.5 13.5 8 silver 3 HP below 4P 50HZ, 60HZ
TB-495B 70 55 5.5 13.5 All silver 5 HP below 4P 50HZ, 60HZ
TB-405B 70 55 5.5 13.5 Special silver 3 HP below 4P 50HZ, 60HZ

01 | 02 | 03 | 04
