Capacitor | Motor Starting Capacitor

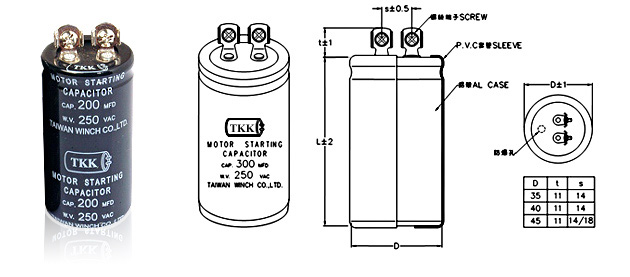

R-Type Terminator


Voltage : V.A.C.125V.A.C.160V.A.C.250

Model V.A.C. uF % °C % HZ Size (mm)
DØ L
RMS-101 125 100 0~+20 -20~65 8%(MAX) 50/60 35 61
RMS-102 125 150 0~+20 -20~65 8%(MAX) 50/60 35 70
RMS-103 125 200 0~+20 -20~65 8%(MAX) 50/60 35 70
RMS-104 125 250 0~+20 -20~65 8%(MAX) 50/60 40 70
RMS-105 125 300 0~+20 -20~65 8%(MAX) 50/60 40 70
RMS-106 125 400 0~+20 -20~65 8%(MAX) 50/60 40 90
RMS-107 125 500 0~+20 -20~65 8%(MAX) 50/60 40 90
RMS-108 125 600 0~+20 -20~65 8%(MAX) 50/60 45 90
RMS-109 125 700 0~+20 -20~65 8%(MAX) 50/60 45 90
RMS-110 125 800 0~+20 -20~65 8%(MAX) 50/60 45 90
